CW Multi-mode Pigtailed Laser Diode (405-1550 nm) | SIMTRUM Photonics Sotre

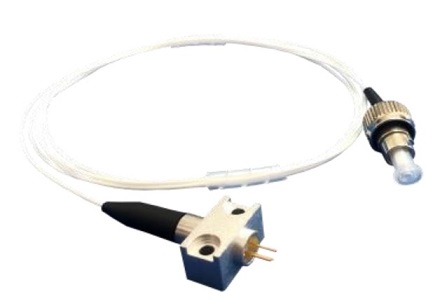

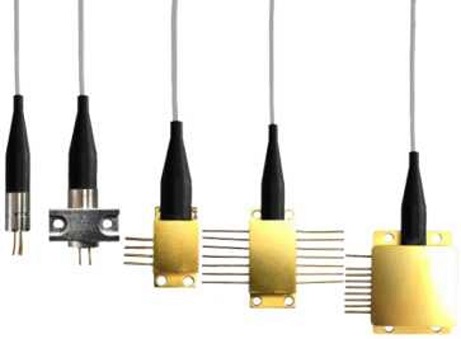

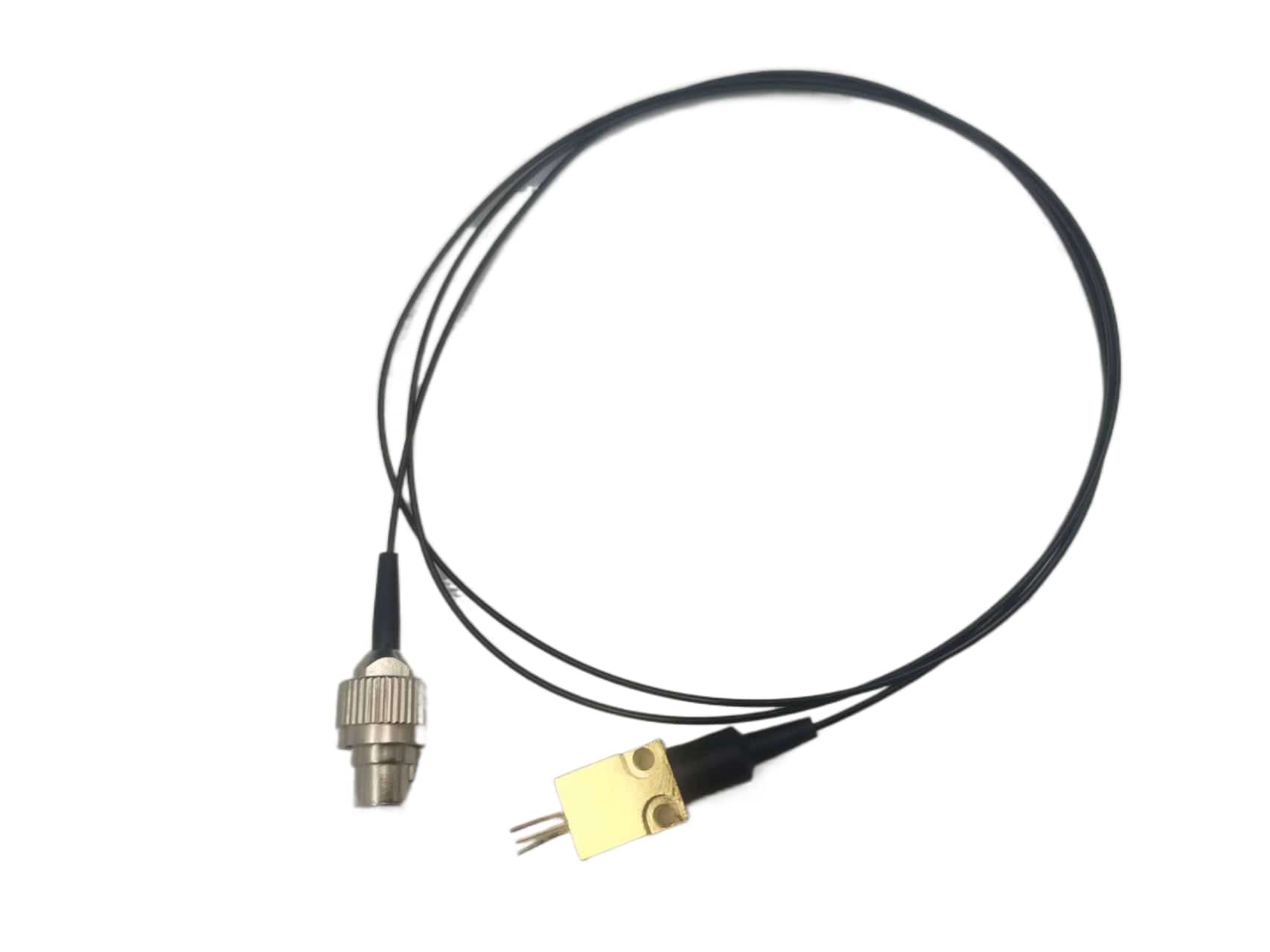

CW Multi-mode Pigtailed Laser Diode (405-1550 nm)
SIMTRUM offers continuous-wave (CW) multi-mode (MM) pigtail laser diodes covering the 405–1550 nm wavelength range. These diodes feature high output power, excellent beam quality, and high reliability, and are widely used in fields such as laser display, precision machining, and laser lighting. Additionally, module versions with integrated drivers are available.
User Manual:



Features

  • High Output Power
  • Excellent Beam Quality
  • High Reliability

Application

  • Precision Machining
  • Laser Display
  • Laser Lighting

Model Center Wavelength (nm) Output Power*(W) Fiber Type Fiber Length Download Specifications Optional Modules
LL-Pigtail-405-1-MM 405±5 1

MMF















































MMF

1.2m (Customizable)















































1.2m (Customizable)


Driver Module


















































LL-Pigtail-425-1.2-MM 425±5 1.2
LL-Pigtail-435-5-MM 435±5 5
LL-Pigtail-450-1.5-MM 450±5 1.5
LL-Pigtail-450-5-MM 450±5 5
LL-Pigtail-460-1.2-MM 460±5 1.2
LL-Pigtail-520-0.28-MM 520±6 0.28
LL-Pigtail-520-1.2-MM 520±8 1.2 (Typ.)
1.4 (Max)
LL-Pigtail-640-0.65-MM 640±5 0.65
LL-Pigtail-640-1.2-MM 640±5 1.2
LL-Pigtail-755-6-MM 755±5 6 (Typ.)
7 (Max)
LL-Pigtail-765-6-MM 765±5 6 (Typ.)
7 (Max)
LL-Pigtail-780-9-MM 780±5 9 (Typ.)
9.5 (Max)
LL-Pigtail-793-9-MM 793±7 9 (Typ.)
9.5 (Max)
LL-Pigtail-808-0.5-MM 808±8 0.5
LL-Pigtail-808-5-MM 808±8 5 (Typ.)
5.5 (Max)
LL-Pigtail-808-10-MM 808±8 10 (Typ.)
11 (Max)
LL-Pigtail-830-2-MM 830±5 2 (Typ.)
2.5 (Max)
LL-Pigtail-850-0.5-MM 850±5 0.5
LL-Pigtail-880-12-MM 880±5 12 (Typ.)
14 (Max)
LL-Pigtail-915-15-MM 915±5 15 (Typ.)
17 (Max)
LL-Pigtail-940-10-MM 940±5 10 (Typ.)
12 (Max)
LL-Pigtail-976-15-MM 976±6 15 (Typ.)
17 (Max)
LL-Pigtail-978-0.3-MM 978±6 0.3
LL-Pigtail-1064-10-MM 1064±8 10 (Typ.)
12 (Max)
LL-Pigtail-1470-2-MM 1470±10 2 (Typ.)
2.2 (Max)
LL-Pigtail-1550-3-MM 1550±10 3 (Typ.)
3.5 (Max)
*Power can be adjusted via current.

Product Type Wavelength Options Power Range Fiber Type
CW Single-mode/Polarization-maintaining
Pigtailed Laser Diode(405-1550 nm)
405/450/488/505/520/638/660/685/785/790/
808/830/850/905/940/980/1064/1550 nm
10-120 mW SMF/PMF
CW Multi-mode Pigtailed Laser Diode
(405-1550 nm)
405/425/435/450/460/520/640/755/765/780/793/
808/830/850/880/915/940/980/1064/1470/1550 nm
0.2-15W MMF






If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm
Linewidth   nm
Output Power   mW
Output Type   / SM/PM/MM
Output Configuration   / Free Space/Fiber-coupled





We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset

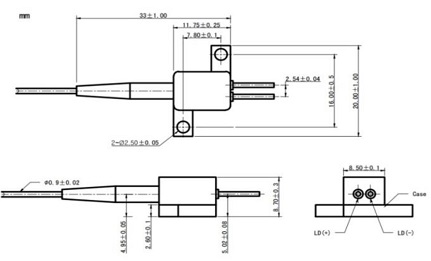

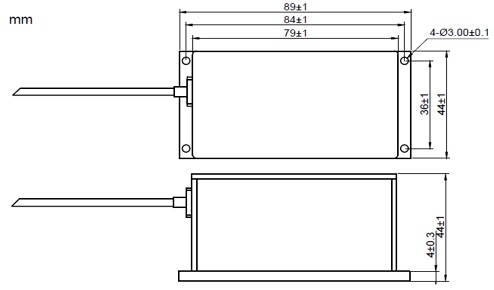

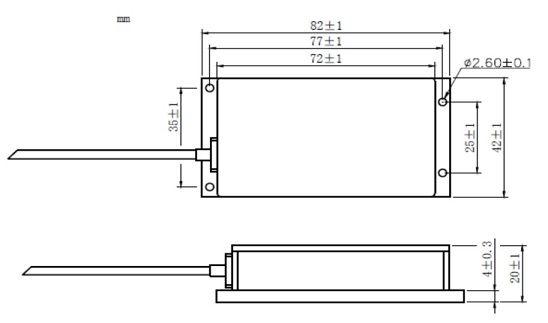

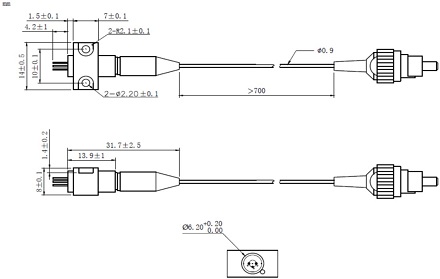

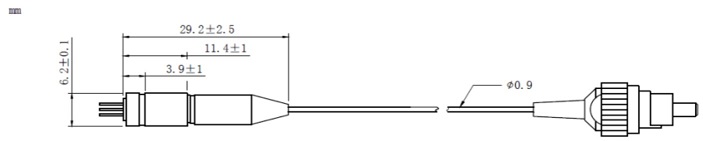

Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-Pigtail-405-1-MM
Wavelength: 405 nm Output Power: 1W, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $296.00
LL-Pigtail-425-1.2-MM
Wavelength: 425 nm Output Power: 1.2W, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $222.00
LL-Pigtail-435-5-MM
Wavelength: 435 nm Output Power: 5W, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $222.00
LL-Pigtail-450-1.5-MM
Wavelength: 450 nm Output Power: 1.5W, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $222.00
LL-Pigtail-450-5-MM
Wavelength: 450 nm Output Power: 5W, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $222.00
LL-Pigtail-460-1.2-MM
Wavelength: 460 nm Output Power: 1.2W, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $281.00
LL-Pigtail-520-0.28-MM
Wavelength: 520 nm Output Power: 280 mW, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $222.00
LL-Pigtail-520-1.2-MM
Wavelength: 520 nm Output Power: 1.2W (up to 1.4W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $296.00
LL-Pigtail-640-0.65-MM
Wavelength: 640 nm Output Power: 650 mW, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $222.00
LL-Pigtail-640-1.2-MM
Wavelength: 640 nm Output Power: 1.2W, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $296.00
LL-Pigtail-755-6-MM
Wavelength: 755 nm Output Power: 6W (up to 7W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-765-6-MM
Wavelength: 765 nm Output Power: 6W (up to 7W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-780-9-MM
Wavelength: 780 nm Output Power: 9W (up to 9.5W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-793-9-MM
Wavelength: 793 nm Output Power: 9W (up to 9.5W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-808-0.5-MM
Wavelength: 808 nm Output Power: 500 mW, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-808-5-MM
Wavelength: 808 nm Output Power: 5W (up to 5.5W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-808-10-MM
Wavelength: 808 nm Output Power: 10W (up to 11W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-830-2-MM
Wavelength: 830 nm Output Power: 2W (up to 2.5W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-850-0.5-MM
Wavelength: 830 nm Output Power: 500 mW, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-880-12-MM
Wavelength: 880 nm Output Power: 12W (up to 14W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-915-15-MM
Wavelength: 915 nm Output Power: 15W (up to 17W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-940-10-MM
Wavelength: 940 nm Output Power: 10W (up to 12W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-978-0.3-MM
Wavelength: 978 nm Output Power: 300 mW, Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-976-15-MM
Wavelength: 976 nm Output Power: 15W (up to 17W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $207.00
LL-Pigtail-1064-10-MM
Wavelength: 1064 nm Output Power: 10W (up to 12W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $281.00
LL-Pigtail-1470-2-MM
Wavelength: 1470 nm Output Power: 2W (up to 2.2W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $296.00
LL-Pigtail-1550-3-MM
Wavelength: 1550 nm Output Power: 3W (up to 3.5W), Power can be adjusted via current. Fiber Type: MMF Price per item; for bulk orders, please contact SIMTRUM
Contact us $281.00

LL-Pigtail-Module-MM - Parameter

LL-Pigtail-1550-3-MM - Parameter

LL-Pigtail-1470-2-MM - Parameter

LL-Pigtail-1064-10-MM - Parameter

LL-Pigtail-976-15-MM - Parameter

LL-Pigtail-978-0.3-MM - Parameter

LL-Pigtail-940-10-MM - Parameter

LL-Pigtail-915-15-MM - Parameter

LL-Pigtail-880-12-MM - Parameter

LL-Pigtail-850-0.5-MM - Parameter

LL-Pigtail-830-2-MM - Parameter

LL-Pigtail-808-10-MM - Parameter

LL-Pigtail-808-5-MM - Parameter

LL-Pigtail-808-0.5-MM - Parameter

LL-Pigtail-793-9-MM - Parameter

LL-Pigtail-780-9-MM - Parameter

LL-Pigtail-765-6-MM - Parameter

LL-Pigtail-755-6-MM - Parameter

LL-Pigtail-640-1.2-MM - Parameter

LL-Pigtail-640-0.65-MM - Parameter

LL-Pigtail-520-1.2-MM - Parameter

LL-Pigtail-520-0.28-MM - Parameter

LL-Pigtail-460-1.2-MM - Parameter

LL-Pigtail-450-5-MM - Parameter

LL-Pigtail-450-1.5-MM - Parameter

LL-Pigtail-435-5-MM - Parameter

LL-Pigtail-425-1.2-MM - Parameter

LL-Pigtail-405-1-MM - Parameter

LL-Pigtail-Module-MM - Download

LL-Pigtail-1550-3-MM - Download

LL-Pigtail-1470-2-MM - Download

LL-Pigtail-1064-10-MM - Download

LL-Pigtail-976-15-MM - Download

LL-Pigtail-978-0.3-MM - Download

LL-Pigtail-940-10-MM - Download

LL-Pigtail-915-15-MM - Download

LL-Pigtail-880-12-MM - Download

LL-Pigtail-850-0.5-MM - Download

LL-Pigtail-830-2-MM - Download

LL-Pigtail-808-10-MM - Download

LL-Pigtail-808-5-MM - Download

LL-Pigtail-808-0.5-MM - Download

LL-Pigtail-793-9-MM - Download

LL-Pigtail-780-9-MM - Download

LL-Pigtail-765-6-MM - Download

LL-Pigtail-755-6-MM - Download

LL-Pigtail-640-1.2-MM - Download

LL-Pigtail-640-0.65-MM - Download

LL-Pigtail-520-1.2-MM - Download

LL-Pigtail-520-0.28-MM - Download

LL-Pigtail-460-1.2-MM - Download

LL-Pigtail-450-5-MM - Download

LL-Pigtail-450-1.5-MM - Download

LL-Pigtail-435-5-MM - Download

LL-Pigtail-425-1.2-MM - Download

LL-Pigtail-405-1-MM - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

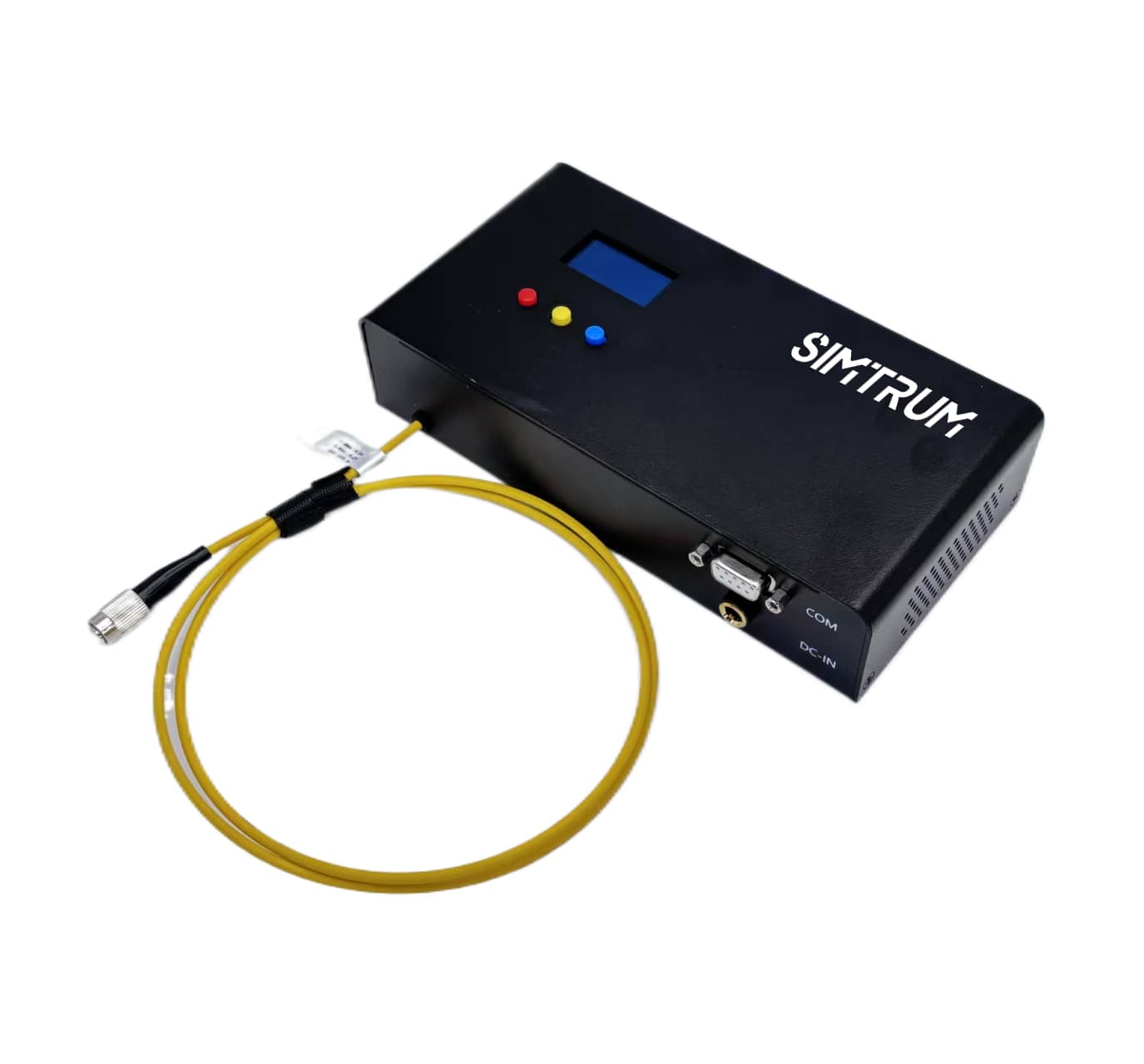

LL-Pigtail-Module-MM
Provide integrated modules with drivers
Contact us Request for quote
