Deuterium Lamp Light Source (190–600 nm)
Overview Specifications Related Products Order Now!
SIMTRUM's deuterium lamp light sources cover a wavelength range of 190–600 nm and feature dual convection cooling fans, offering excellent heat dissipation and high stability. This product is suitable for applications such as spectral analysis, transmittance measurement, and reflectance measurement.

Features

  • Wavelength Range: 190-600 nm
  • Built-in Dual Convection Cooling Fan
  • High Stability

Applications

  • Reflectance Measurement
  • Transmittance Measurement
  • Spectral Detection
  • Absorbance Measurement

Product Specifications
 Test Report and User Manual:SIMTRUM_PDF
Model LL-Lamp-DL
Wavelength Range 190–600 nm
(Equipped with a filter holder capable of accommodating filters less than 3 mm thick)
Bulb Power 30W
Bulb Lifespan Approx. 1,000 hours
Fiber Interface Type SMA905/FC interface
Power Supply AC220V 50Hz
Dimensions 210*230*90 mm3
Warranty Period One year (excluding consumables)

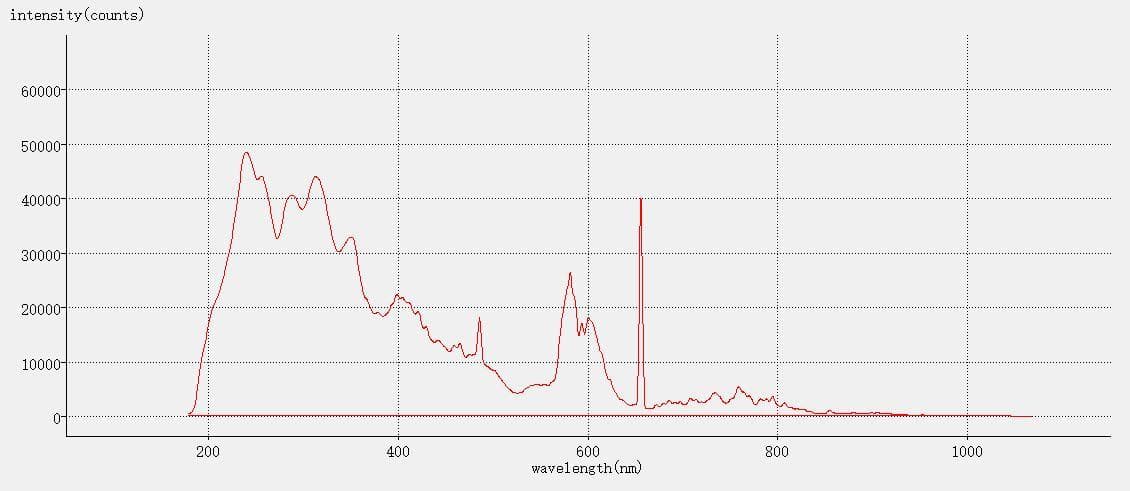

LL-Lamp-DL Spectrum (using a 200–1100 nm spectrometer)






Model Wavelength Range Power Lifespan
Deuterium Lamp Light Source
(190-600 nm)		 190-600 nm Bulb Power 30W 1,000 hours
Deuterium & Tungsten Lamp
Light Source (190-2500 nm)		 190-2500 nm Deuterium lamp: 30W&
Tungsten lamp: 20W		 Deuterium lamp: 1,000 hours&
Tungsten lamp: 2,000 hours
Mercury Argon Lamp Calibration
Light Source(253-1704 nm)		 253-1704 nm / Approximately 5,000 hours
Tungsten Lamp Light Source
(350-2500 nm)		 350-2500 nm Bulb Power: 10/20/100W Approximately 2,000 hours
