Standard Power Femtosecond Laser 515–1570 nm | SIMTRUM Photonics Store

Products / Lasers/Light /Fiber Lasers /Femtosecond Pulse Fiber Laser (515-1570nm) /Standard Power Femtosecond Laser (515–1570 nm) /
Standard Power Femtosecond Laser (515–1570 nm)
515/532 nm (200-800 mW) 780-790 nm (10-800 mW) 920/980 nm (1-60 mW) 1030-1080 nm (6-750 mW) 1550-1570 nm (70-800 mW) Related Products Order Now!
SIMTRUM's 515/532 nm femtosecond lasers features a highly stable fiber seed source, fully automated mode-locked pulses, high-efficiency frequency doubling, and low-noise cascade optical amplification technology. It delivers long operating lifetimes, outstanding power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is used in a wide range of applications such as multi-photon imaging, 3D printing, and biological micro-nano ablation.

Features

  • High Stability
  • Long Operating Lifetime
  • Optional Repetition Rate (20-80 MHz)
  • Fully Polarization-Maintaining Fiber (PMF) Structure
  • Switchable/Synchronized Output for 515/532 and 1030/1064 nm

Applications

  • Multi-photon Imaging
  • Multi-photon 3D printing
  • Biological Micro-nano Ablation

Specifications
Product Number LL-FS-515/532-150-25-200 LL-FS-515/532-150-25-500 LL-FS-515/532-150-25-800
Working Wavelength 515/532 nm
3 dB Spectral Width 2.5 nm
Pulse Width ≤150 fs
Repetition Rate 25 MHz (20-80 MHz optional)
Average Output Power ＞200 mW ＞500 mW ＞800 mW
Pulse Energy ＞8 nJ ＞20 nJ ＞32 nJ
Power Stability RMS＜2%
Beam Circularity ＞90%
Polarization Extinction Ratio (PER) ＞20 dB
Output Type Free Space, Beam Diameter 2 mm
Wavelength Switching Method Switchable/Synchronized Output for 515/532 and 1030/1064 nm
Pulse-Synchronized Electrical Monitoring Port TTL Synchronous Pulses for Laser Output
Computer Control Interface RS232
Voltage/Current 220V/5A
Operational Temperature 18-32 ℃
Dimensions 350×266×160 mm3

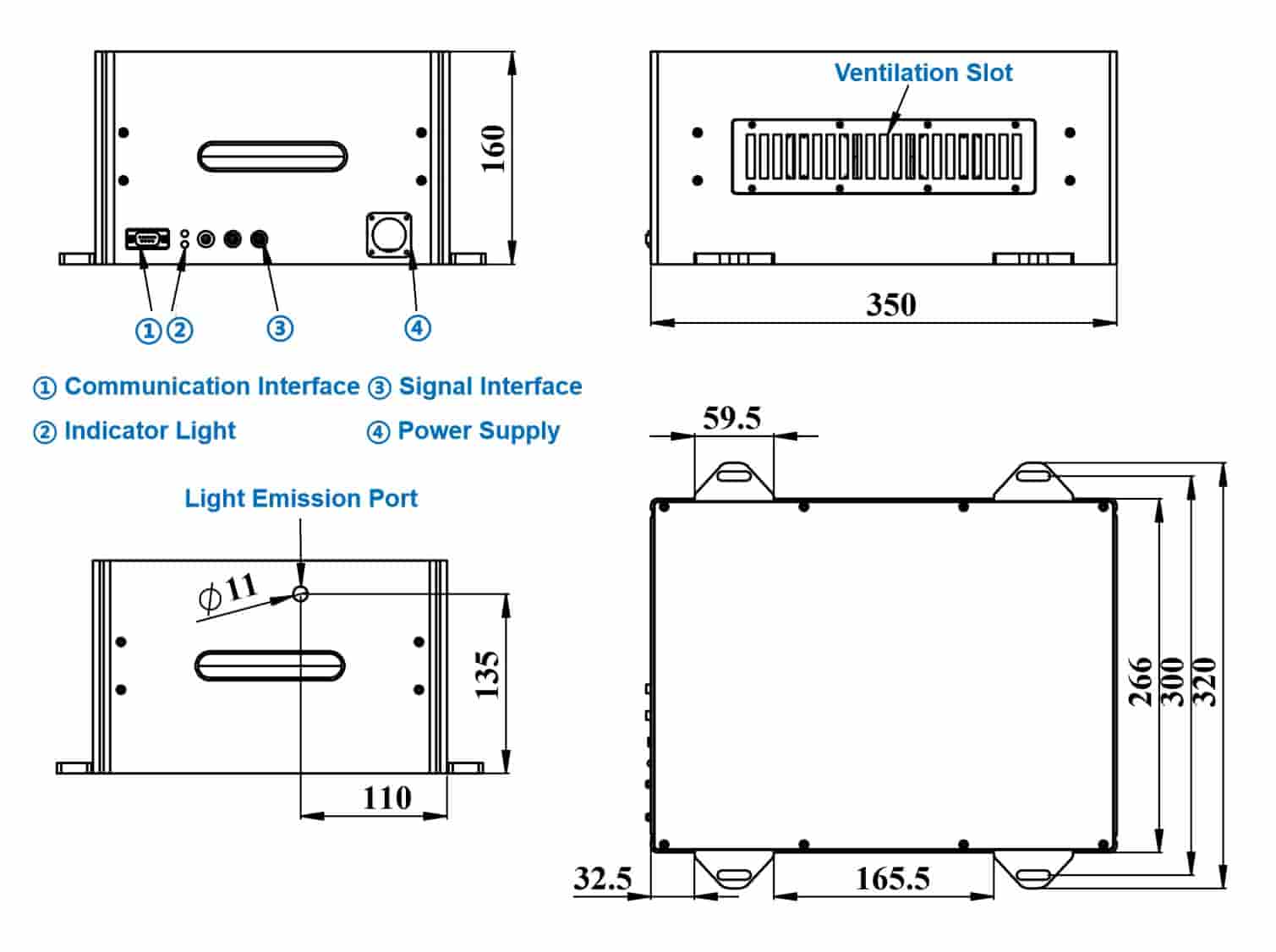

Dimensions

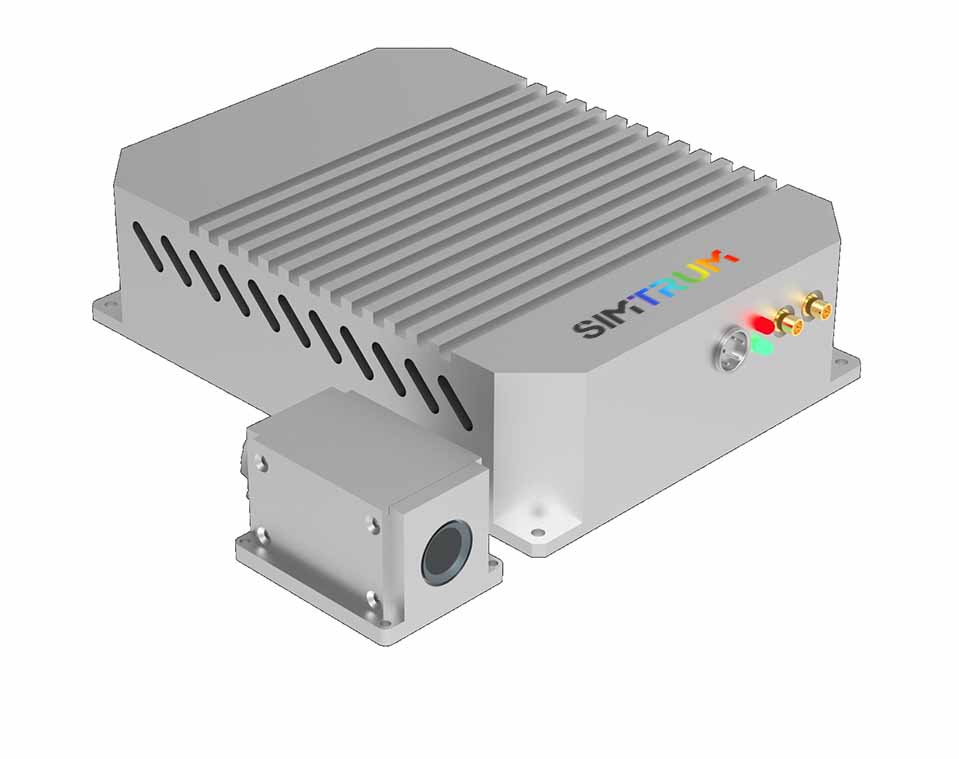

SIMTRUM's 780-790 nm femtosecond laser features fully automated mode-locking pulse technology, high-efficiency frequency doubling, high-precision dispersion compensation, and low-noise optical amplification technology. It delivers long operating lifetimes, outstanding power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is used in a wide range of applications such as micro-nano 3D printing, THz time-domain spectroscopy, laser ranging, and other fields.

10-120 mW

200-800 mW

Features

  • High Stability
  • Long Operating Lifetime
  • Optional Repetition Rate (10-150 MHz)
  • High Pulse Contrast
  • Provide Modular Products (10-120 mW）

Applications

  • Micro-nano 3D Printing
  • THz Time-domain Spectroscopy
  • Laser Ranging
  • Seed Source
  • Two-photon Micro-nano Processing

Specifications
Product Number LL-FS-780-100-80-
10/20/40/60/80/100/120		 LL-FS-Dual-785-120/150-80-
200/500/800*
Working Wavelength 780 nm 785 nm (780-790 nm optional)
Pulse Width ≤100 fs ≤120 fs ≤150 fs
Repetition Rate 80 MHz (10-150 MHz optional) 80 MHz 80 MHz (20-100 MHz optional)
Average Output Power 10 mW 20 mW 40 mW 60 mW 80 mW 100 mW 120 mW ≥200 mW ≥500 mW ≥800 mW
Pulse Energy 0.12 nJ 0.25 nJ 0.5 nJ 0.75 nJ 1.0 nJ 1.25 nJ 1.5 nJ ≥2.5 nJ ≥6.25 nJ ≥10.0 nJ
Power Stability RMS＜1% RMS＜2%
Polarization Extinction Ratio (PER) ＞15 dB
Output Type Free Space, Beam Diameter 1 mm Free Space, Beam Diameter 2 mm
Pulse Electrical Monitoring Port TTL Signal for Laser Output Oscillator Synchronized TTL Signal Output
Computer Control Interface RS232
Power Supply 12V 220V/5A, With optional power supply module
Operational Temperature 18-32 ℃
Laser Module Dimensions 190×135×50 mm3 224×165×60 mm3 330×294×110 mm3 400×330.5×122 mm3
SHG Module Dimensions 69.5×52×44 mm3 /

*For 200/500/800mW products, dual-wavelength output at 780/1560nm is available. An internal beam splitter adjusts the output power for both 780nm and 1560nm wavelengths, each adjustable from 0% to maximum power.
*For higher-power products with 780/1560nm dual-wavelength output, please refer to the link:780/1560 nm Dual Output Femtosecond Laser

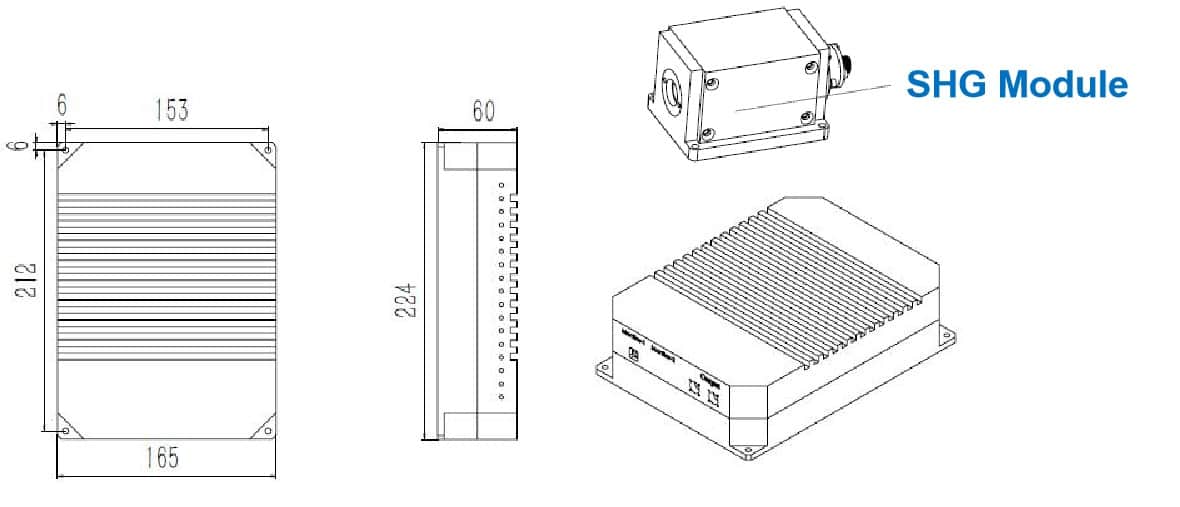

Dimensions

Suitable for Power Ranges: 40–120 mW


Suitable for Power Ranges: 200–800 mW



*Provides three output channels: the first channel emits at 780 nm, while the second and third channels emit at 1560 nm.

1)The power adjustment range of the first channel is inversely proportional to that of the second channel.
2) The power adjustment range of the first channel is directly proportional to that of the third channel. Collinear or split-beam output is selectable.


SIMTRUM's 920/980 nm femtosecond laser features pump protection technology, fully automated mode-locked pulse technology, and low-noise optical amplification technology. It delivers advantages such as compact size, high power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is used in a wide range of applications such as metrology, laser ranging, seed sources and other fields.

Features

  • Linear Chirp Pulse
  • High Stability and Reliability
  • Fully Polarization-Maintaining Fiber (PMF) Structure

Applications

  • Seed Source
  • Metrology
  • Laser Ranging
Specifications
Product Number LL-FS-920/980-3-30-1/30/60
Working Wavelength 920/980 nm
3 dB Spectral Width ＞10 nm
Pulse Width 3 ps (Linear chirped, dechirped to less than 200 fs)
Repetition Rate 30 MHz
Average Output Power 1 mW 30 mW 60 mW
Pulse Energy ＞0.2 nJ ＞1.0 nJ ＞2.0 nJ
Power Stability RMS＜1%
Polarization Extinction Ratio (PER) ＞20 dB
Output Type PM780 Fiber with FC/APC connector
Pulse-Synchronized Electrical Monitoring Port TTL Synchronous Pulses for Laser Output
Computer Control Interface RS232
Voltage/Current 12V/3A
Operational Temperature 18-32 ℃
Dimensions 224×165×60 mm3


Dimensions

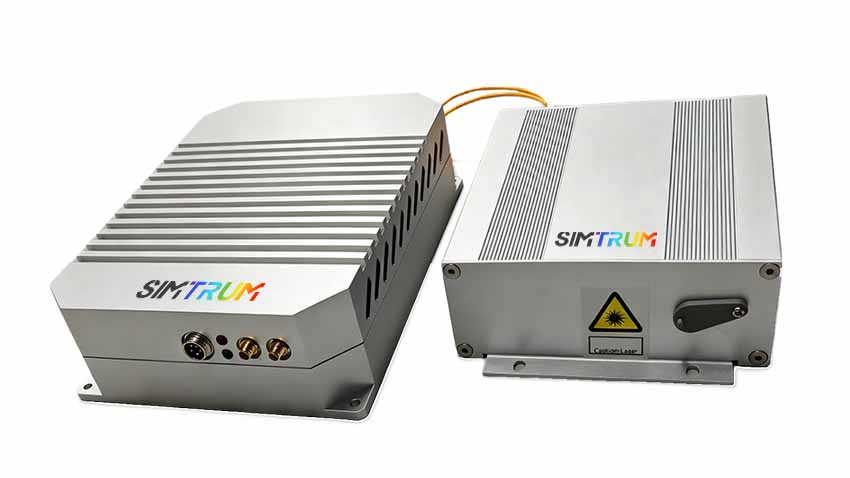

SIMTRUM's 1030-1080 nm femtosecond laser features pump protection technology, fully automated mode-locked pulse technology, and low-noise optical amplification technology. It delivers advantages such as compact size, high power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is used in a wide range of applications such as metrology, laser ranging, seed sources and other fields.

12V/3A Module

External Pulse Compressor (220V/5A)

Features

  • Linear Chirp Pulse
  • High Stability and Reliability
  • Fully Polarization-Maintaining Fiber (PMF) Structure

Applications

  • Seed Source
  • Metrology
  • Laser Ranging
Specifications
Product Number LL-FS-1030/1064-3-
30/25/80-6/25/50/200		 LL-FS-1030/1064-150-25-50/150/750
 (External Pulse Compressor)
Working Wavelength 1030/1064 nm (1030-1080 nm optional)
3 dB Spectral Width ＞10 nm ＞15 nm ＞10 nm
Pulse Width 3 ps (Linear chirped, dechirped to less than 200 fs) ≤150 fs
Repetition Rate 30 MHz 25 MHz (10-80 MHz optional) 80 MHz 25 MHz
Average Output Power ＞6 mW ＞25 mW ＞50 mW ＞200 mW ＞50 mW ＞150 mW ＞750 mW
Pulse Energy ＞0.2 nJ ＞1.0 nJ ＞2.0 nJ ＞2.5 nJ ＞2.0 nJ ＞6.0 nJ ＞30 nJ
Power Stability RMS＜1% RMS＜2%
Polarization Extinction Ratio (PER) ＞20 dB ＞10 dB
Output Type PM980 Fiber with FC/APC connector Free Spce, Beam Diameter 2 mm
Pulse-Synchronized Electrical Monitoring Port TTL Synchronous Pulses for Laser Output
Computer Control Interface RS232
Voltage/Current 12V/3A 220V/5A
Operational Temperature 18-32 ℃
Dimensions 224×165×60 mm3 Laser: 224×165×60 mm3
Compressor: 107×88×47 mm3		 Laser: 250×185×65 mm3
Compressor: 107×88×47 mm3


Dimensions

SIMTRUM's 1550-1570 nm femtosecond laser features pump protection technology, fully automated mode-locked pulse technology, and low-noise optical amplification technology. It delivers advantages such as compact size, high power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is used in a wide range of applications such as metrology, THz time-domain spectroscopy, seed sources and other fields.

70-210 mW



400-800 mW

Features

  • High Pulse Contrast
  • High Stability and Reliability
  • Optional Repetition Rate (20-120 MHz)

Applications

  • Seed Source
  • Metrology
  • THz Time-domain Spectroscopy
  • Two-photon Imaging
Specifications
Product Number LL-FS-1560-100/90-80-
70/140/210		 LL-FS-Dual-1560-120-80-
400/600/800*
Working Wavelength 1560 nm (1550-1570 nm optional)
Pulse Width ＜100 fs (Typ. 90 fs) ＜90 fs (Typ. 80 fs) ≤120 fs
Repetition Rate 80 MHz 80 MHz (20-120 MHz optional)
Average Output Power ＞70 mW ＞140 mW ＞210 mW 400 mW 600 mW 800 mW
Power Stability RMS＜1% RMS＜2%
Polarization Extinction Ratio (PER) ＞20 dB ＞15 dB
Output Type PM1550 Fiber with FC/APC connector, Fiber Length 0.5-4 m Free Spce, Beam Diameter 2 mm
Pulse-Synchronized Electrical Monitoring Port TTL Synchronous Pulses for Laser Output
Computer Control Interface RS232
Voltage 12V 220V/5A
Operational Temperature 10-40 ℃ 18-32 ℃
Dimensions 190×135×50 mm3 224×165×60 mm3 330×250×110 mm3

*For 400/600/800mW products, dual-wavelength output at 780/1560nm is available. An internal beam splitter adjusts the output power for both 780nm and 1560nm wavelengths, each adjustable from 0% to maximum power.
*For higher-power products with 780/1560nm dual-wavelength output, please refer to the link:780/1560 nm Dual Output Femtosecond Laser

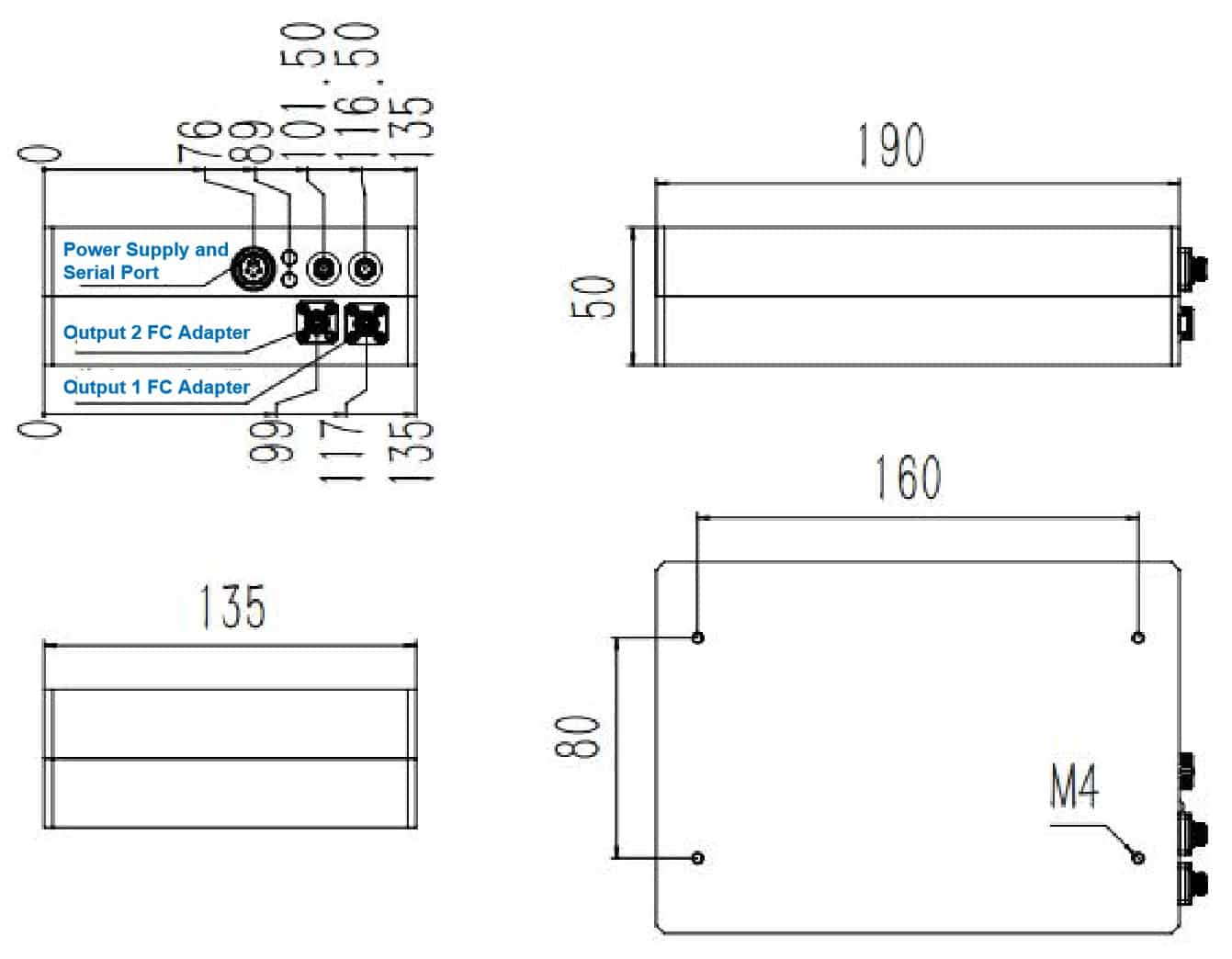

Dimensions
Suitable for 70 mW products


Suitable for Power Ranges: 400–800 mW



*Provides three output channels: the first channel emits at 780 nm, while the second and third channels emit at 1560 nm.
1)The power adjustment range of the first channel is inversely proportional to that of the second channel.
2) The power adjustment range of the first channel is directly proportional to that of the third channel. Collinear or split-beam output is selectable.


Type Wavelength Output Power Pulse Width
Nanosecond Pulse Fiber Laser
（1064 nm-2 μm）		 1064/1550/2000 nm Peak Power 5W-10kW 1-250 ns
Picosecond Pulse Fiber Laser
(266 nm-2 μm)		 266/515/532/1030/1064/1550/1560/1970 nm 1mW-4W 10-100 ps
Femtosecond Pulse Fiber Laser
(515-1570 nm)		 515/532/780/920/980/1030/1064/1560 nm 1mW-10W 90-400 fs
CW Fiber Laser System
（405 nm-2 μm）		 405-2000 nm 5mW-30W /
CW Narrow Linewidth Lasers
（780 nm-2 μm）		 1530-2100 nm 20mW-1W Linewidth
1.5 kHz-2 MHz



If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm
Average Output Power   mW
Power Stability   %
Pulse Width   fs
Repetition Rate   MHz
Output Type   / Free Space/Fiber Output
Polarization Extinction Ratio (PER)   dB
