780/1560 Dual Output Femtosecond Laser | SIMTRUM Photonics Store

SIMTRUM's dual-output femtosecond laser features fully automated mode-locking pulse technology, high-efficiency frequency doubling, high-precision dispersion compensation, and low-noise optical amplification technology. It delivers long operating lifetimes, outstanding power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is used in a wide range of applications such as seed sources, THz instruments, nonlinear spectroscopy, and other fields.
Features High Stability Optional Repetition Rate (20-150 MHz) High Pulse Contrast	Applications Nonlinear Spectroscopy THz Instruments Seed Source Two-photon Micro-nano Processing

Specifications

Product Number	LL-FS-Dual-785-120/150-80-200/400/500/600/800*
Working Wavelength	785 nm (780-790 nm optional)
Pulse Width	≤120 fs		≤150 fs
Repetition Rate	80 MHz (20-150 MHz optional)
Average Output Power	≥200 mW	≥400 mW	≥500 mW	≥600 mW	≥800 mW
Pulse Energy	≥2.5 nJ	≥5.0 nJ	≥6.25 nJ	≥7.5 nJ	≥10.0 nJ
Peak Power	20 kW	40 kW	40 kW	50 kW	65 kW
Fundamental Frequency Power @1560 nm	≥400 mW	≥800 mW	≥1000 mW	≥1200 mW	≥1600 mW
Power Stability	RMS＜2%
Polarization Extinction Ratio (PER)	＞15 dB
Output Type	Free Space, Beam Diameter 2 mm
Pulse Electrical Monitoring Port	Oscillator Synchronized TTL Signal Output
Computer Control Interface	RS232
Power Supply	220V/5A
Operational Temperature	18-32 ℃
Dimensions	330×250×110 mm³		400×276×122 mm³

*For these products, dual-wavelength output at 780/1560nm is available. An internal beam splitter adjusts the output power for both 780nm and 1560nm wavelengths, each adjustable from 0% to maximum power.

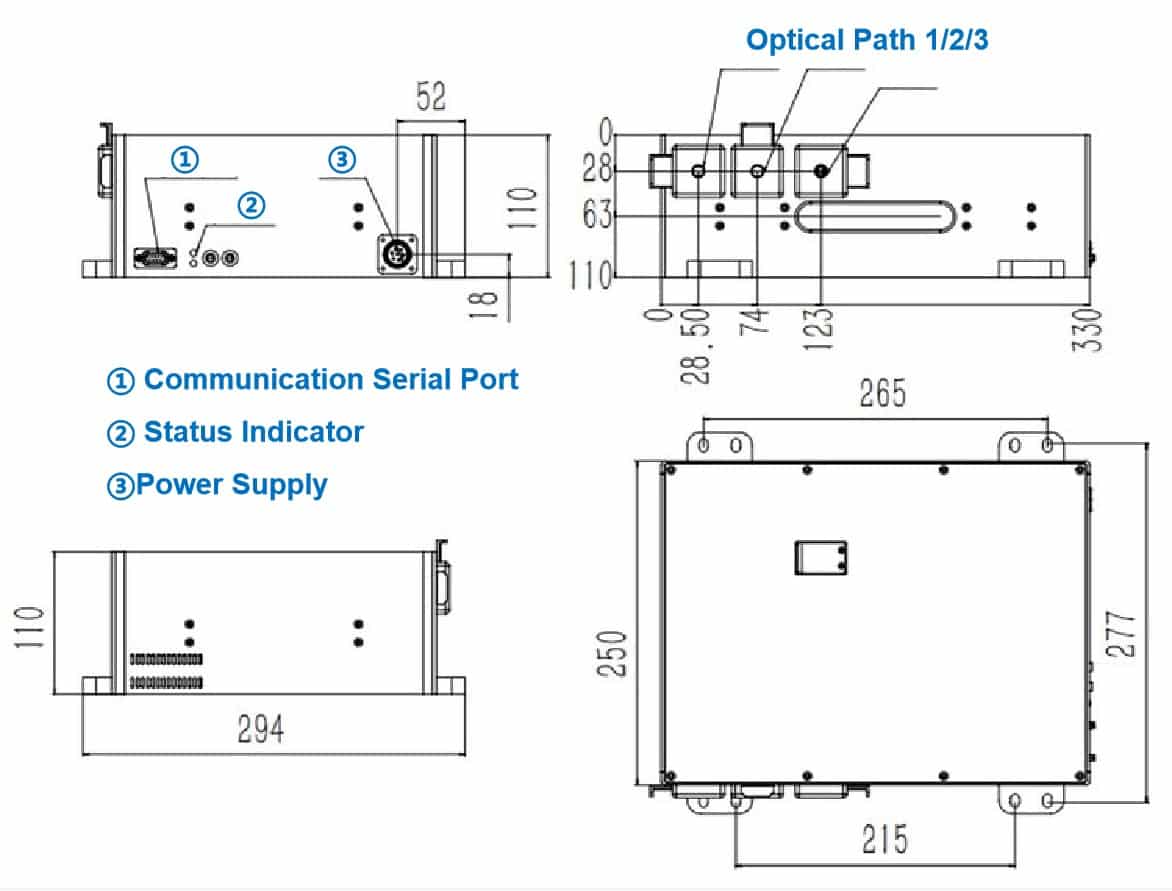

Dimensions

*Provides three output channels: the first channel emits at 780 nm, while the second and third channels emit at 1560 nm.
1)The power adjustment range of the first channel is inversely proportional to that of the second channel.
2) The power adjustment range of the first channel is directly proportional to that of the third channel. Collinear or split-beam output is selectable.

SIMTRUM's dual-output femtosecond laser features fully automated mode-locking pulse technology, high-efficiency frequency doubling, high-precision dispersion compensation, and low-noise optical amplification technology. It delivers long operating lifetimes, outstanding power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is used in a wide range of applications such as seed sources, THz instruments, nonlinear spectroscopy, and other fields.
Features High Stability Optional Repetition Rate (20-150 MHz) High Pulse Contrast	Applications Nonlinear Spectroscopy THz Instruments Seed Source Two-photon Micro-nano Processing

Specifications

Product Number	LL-FS-Dual-780-150-100-1000/1500/2000*
Working Wavelength	780 nm (775-785 nm optional)
Pulse Width	≤150 fs
Repetition Rate	100 MHz
Average Output Power	≥1.0 W	≥1.5 W	≥2.0 W
Pulse Energy	≥10.0 nJ	≥15.0 nJ	≥20.0 nJ
Peak Power	67 kW	100 kW	133 kW
Fundamental Frequency Power @1560 nm	≥2.0 W	≥3.0 W	≥4.0 W
Power Stability	RMS＜2%
Polarization Extinction Ratio (PER)	＞15 dB
Output Type	Free Space, Beam Diameter 2 mm
Pulse Electrical Monitoring Port	TTL Synchronous Pulses for Laser Output
Computer Control Interface	RS232
Power Supply	220V/5A
Operational Temperature	18-32 ℃
Dimensions	400×276×122 mm³

*For these products, dual-wavelength output at 780/1560nm is available. An internal beam splitter adjusts the output power for both 780nm and 1560nm wavelengths, each adjustable from 0% to maximum power.

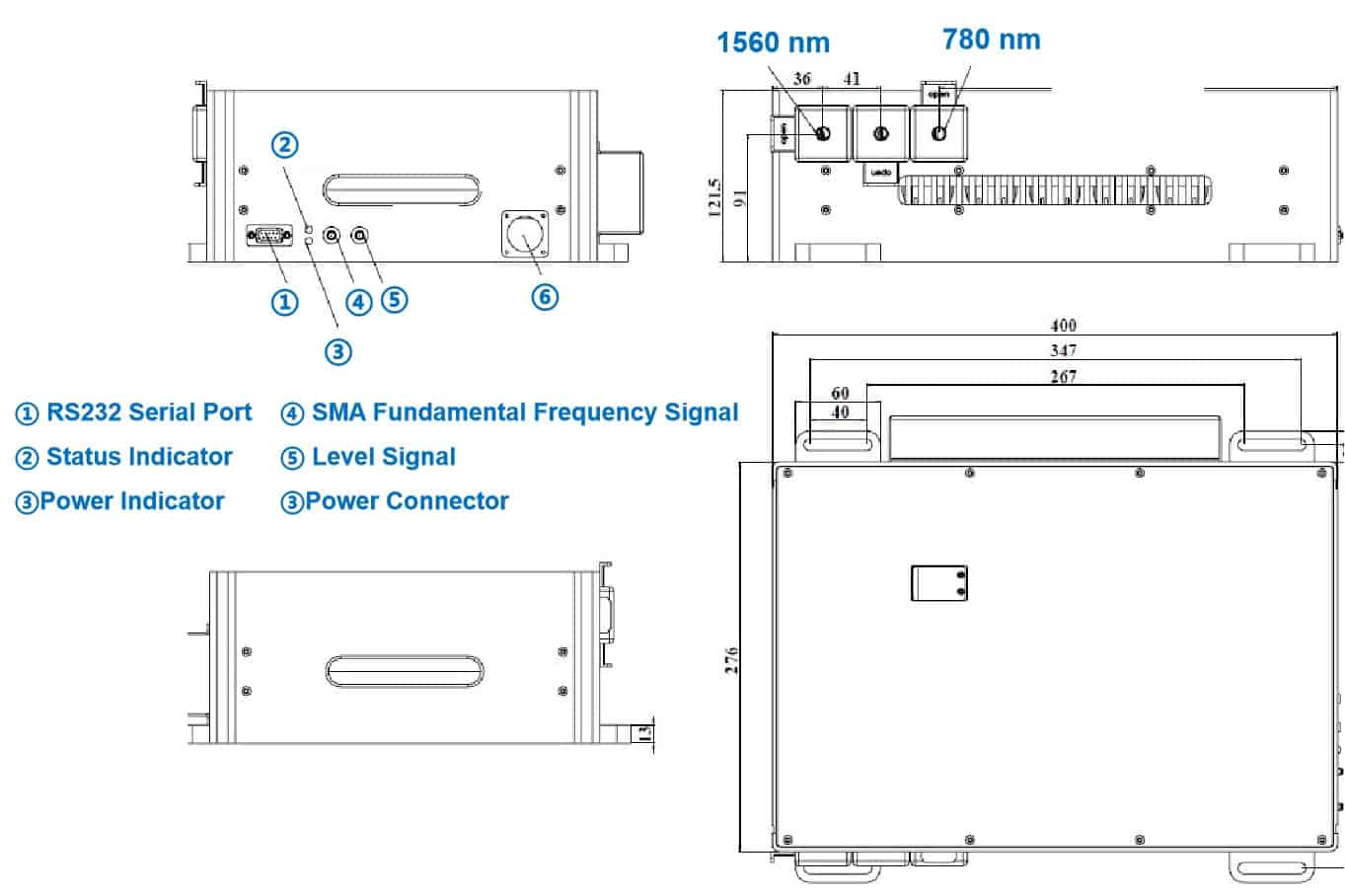

Dimensions

*Provides three output channels: the first channel emits at 780 nm, while the second and third channels emit at 1560 nm.
1)The power adjustment range of the first channel is inversely proportional to that of the second channel.
2) The power adjustment range of the first channel is directly proportional to that of the third channel. Collinear or split-beam output is selectable.

Type	Wavelength	Output Power	Pulse Width
Nanosecond Pulse Fiber Laser （1064 nm-2 μm）	1064/1550/2000 nm	Peak Power 5W-10kW	1-250 ns
Picosecond Pulse Fiber Laser (266 nm-2 μm)	266/515/532/1030/1064/1550/1560/1970 nm	1mW-4W	10-100 ps
Femtosecond Pulse Fiber Laser (515-1570 nm)	515/532/780/920/980/1030/1064/1560 nm	1mW-10W	90-400 fs
CW Fiber Laser System （405 nm-2 μm）	405-2000 nm	5mW-30W	/
CW Narrow Linewidth Lasers （780 nm-2 μm）	1530-2100 nm	20mW-1W	Linewidth 1.5 kHz-2 MHz

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Working Wavelength		nm
Average Output Power		mW
Power Stability		%
Pulse Width		fs
Repetition Rate		MHz
Output Type		/	Free Space/Fiber Output
Polarization Extinction Ratio (PER)		dB

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
LL-FS-Dual-785-120-80-200 Working Wavelength: 785nm (780-790 nm optional), Average Output Power: ≥200mW,Pulse Energy: ≥2.5nJ ,Peak Power: 20kW ,Pulse Width: ≤120fs, Repetition Rate: 80MHz (20-100 MHz optional) ,Power Stability: RMS＜2%, Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
LL-FS-Dual-785-120-80-400 Working Wavelength: 785nm (780-790 nm optional) ,Average Output Power: ≥400mW, Pulse Energy: ≥5nJ, Peak Power: 40kW ,Pulse Width: ≤120fs ,Repetition Rate: 80MHz (20-100 MHz optional) ,Power Stability: RMS＜2%, Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
LL-FS-Dual-785-150-80-500 Working Wavelength: 785nm (780-790 nm optional), Average Output Power: ≥500mW ,Pulse Energy: ≥6.25nJ, Peak Power: 40kW ,Pulse Width: ≤150fs ,Repetition Rate: 80MHz (20-100 MHz optional) ,Power Stability: RMS＜2%, Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
LL-FS-Dual-785-150-80-600 Working Wavelength: 785nm (780-790 nm optional) ，Average Output Power: ≥600mW ，Pulse Energy: ≥7.5nJ ，Peak Power: 50kW， Pulse Width: ≤150fs， Repetition Rate: 80MHz (20-100 MHz optional)， Power Stability: RMS＜2% ，Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
LL-FS-Dual-785-150-80-800 Working Wavelength: 785nm (780-790 nm optional) ，Average Output Power: ≥800mW ，Pulse Energy: ≥10nJ ，Peak Power: 65kW， Pulse Width: ≤150fs， Repetition Rate: 80MHz (20-100 MHz optional)， Power Stability: RMS＜2% ，Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
LL-FS-Dual-780-150-100-1000 Working Wavelength: 780nm (775-785 nm optional) ，Average Output Power: ≥1W， Pulse Energy: ≥10nJ， Peak Power: 67kW ，Pulse Width: ≤150fs， Repetition Rate: 100MHz， Power Stability: RMS＜2% ，Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
LL-FS-Dual-780-150-100-1500 Working Wavelength: 780nm (775-785 nm optional) ,Average Output Power: ≥1.5W, Pulse Energy: ≥15nJ, Peak Power: 100kW ,Pulse Width: ≤150fs ,Repetition Rate: 100MHz ,Power Stability: RMS＜2% ,Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
LL-FS-Dual-780-150-100-2000 Working Wavelength: 780nm (775-785 nm optional) ,Average Output Power: ≥2W ,Pulse Energy: ≥20nJ ,Peak Power: 133kW ,Pulse Width: ≤150fs ,Repetition Rate: 100MHz ,Power Stability: RMS＜2%, Output Type: Free Space, Beam Diameter 2 mm	Contact us	Request for quote
