Adjustable Repetition Rate Femtosecond Laser (1020–1040 nm) | SIMTRUM Photonics Store

Products / Lasers/Light /Fiber Lasers /Femtosecond Pulse Fiber Laser (515-1570nm) /Adjustable Repetition Rate Femtosecond Laser (1020–1040 nm) /
Adjustable Repetition Rate Femtosecond Laser (1020–1040 nm)
Standard Power (mW) High Power (W) Related Products Order Now!
SIMTRUM's adjustable repetition rate femtosecond laser features fully automated mode-locking pulse technology, pump protection technology, and low-noise optical amplification technology. It delivers long operating lifetimes, outstanding power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is widely used in fields such as seed sources.

Features

  • Burst Trigger Mode
  • Adjustable Repetition Rate (50 kHz-10 MHz)
  • High Pulse Contrast

Applications

  • Nonlinear Spectroscopy
  • THz Instruments
  • Seed Source
  • Two-photon Micro-nano Processing

Specifications
Product Number LL-FS-1030-4-0.05/10-1/10 LL-FS-1030-4-0.05/10-3/30 LL-FS-1030-70/140/210/800-0.05/10-50
Working Wavelength 1030 nm (1025-1035 nm optional)
3 dB Spectral Width ＞10 nm 6 nm 12 nm 18 nm 18 nm
Pulse Width 4 ps 70 ps 140 ps 210 ps ＞800 ps
(Linear chirped, dechirped to less than 300 fs)
Adjustable Repetition Rate 50 kHz-10 MHz (with selective pulse interval 20-50 ns)
Average Output Power ≥1 mW@100 kHz
≥10 mW@1 MHz		 ≥3 mW@100 kHz
≥30 mW@1 MHz		 ＞50 mW@1 MHz
Pulse Energy ≥10 nJ ≥30 nJ ＞50 nJ
Power Stability RMS＜2%
Polarization Extinction Ratio (PER) ＞20 dB
Output Type 0.5 m PMF with FC/APC connector
Pulse Electrical Monitoring Port TTL synchronous signal output for laser output and pulse picker
Computer Control Interface RS232
Power Supply 24V/5A
Operational Temperature 18-32 ℃
Dimensions 224×185×70 mm3

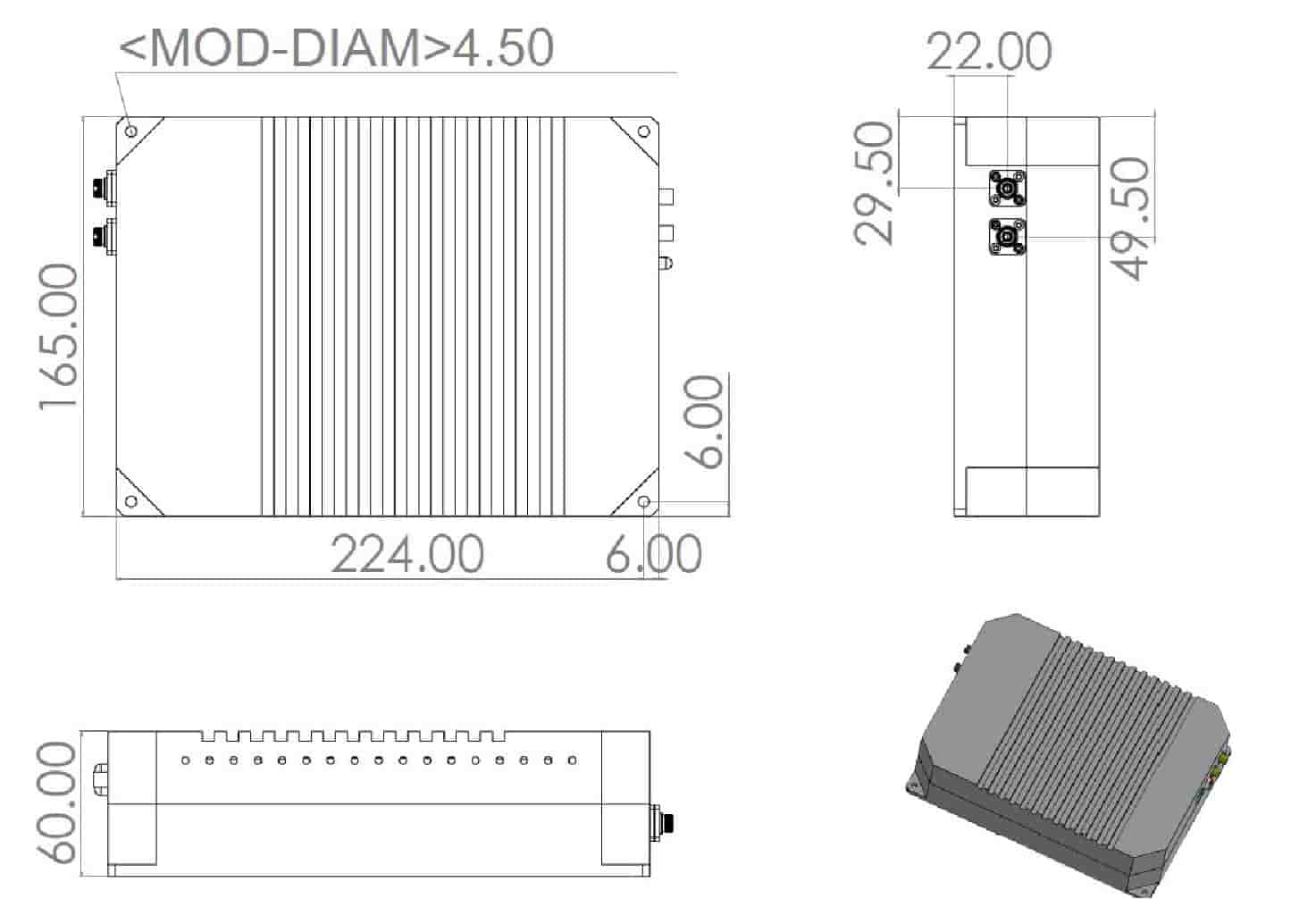

Dimensions


SIMTRUM's adjustable repetition rate femtosecond laser features fully automated mode-locking pulse technology, pump protection technology, and low-noise optical amplification technology. It offers optional air-cooled or water-cooled temperature control, delivering long operating lifetimes, outstanding power stability, and excellent reliability. As a dependable optoelectronic integrated device, this laser is widely used in fields such as precision processing, THz technology, and nonlinear spectroscopy.

Features

  • High Stability
  • Adjustable Repetition Rate (100 kHz-5 MHz)
  • Fully Polarization-Maintaining Fiber (PMF) Structure

Applications

  • Nonlinear Spectroscopy
  • THz Technology
  • Precision Processing

Specifications
Product Number LL-FS-1030-0.4/10-0.1/5-10 LL-FS-1030-0.4/10-0.1/5-100
Working Wavelength 1030 nm (1020-1040 nm optional)
3 dB Spectral Width 10 nm
Pulse Width 400 fs-10 ps optional
Adjustable Repetition Rate 100 kHz-5 MHz
Average Output Power 10 W@1 MHz 10 W@100 kHz
Pulse Energy 10 μJ 100 μJ
Power Stability RMS＜2%
Polarization Extinction Ratio (PER) ＞10 dB
Beam Circularity ＞90%
Beam Diameter 2 mm
Pulse Electrical Monitoring Port TTL synchronous signal output for laser output and pulse picker
Computer Control Interface RS232
Power Supply 220V/10A
Operational Temperature 18-32 ℃
Dimensions 860×410×143 mm3




Type Wavelength Output Power Pulse Width
Nanosecond Pulse Fiber Laser
（1064 nm-2 μm）		 1064/1550/2000 nm Peak Power 5W-10kW 1-250 ns
Picosecond Pulse Fiber Laser
(266 nm-2 μm)		 266/515/532/1030/1064/1550/1560/1970 nm 1mW-4W 10-100 ps
Femtosecond Pulse Fiber Laser
(515-1570 nm)		 515/532/780/920/980/1030/1064/1560 nm 1mW-10W 90-400 fs
CW Fiber Laser System
（405 nm-2 μm）		 405-2000 nm 5mW-30W /
CW Narrow Linewidth Lasers
（780 nm-2 μm）		 1530-2100 nm 20mW-1W Linewidth
1.5 kHz-2 MHz



If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.
Items Detail Unit Remark
Application
Working Wavelength   nm
Average Output Power   mW
Power Stability   %
Pulse Width   fs
Repetition Rate   MHz
Output Type   / Free Space/Fiber Output
Polarization Extinction Ratio (PER)   dB



We are here for you!



Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-FS-1030-4-0.05/10-1/10
Working Wavelength: 1030nm (1025-1035 nm optional) ,Average Output Power: ＞1mW@100kHz, ＞10mW@1MHz ,Pulse Energy: ＞10nJ ,Pulse Width: 4 ps (Linear chirped, dechirped to less than 300 fs) ,Adjustable Repetition Rate: 50kHz-10MHz (with selective pulse interval 20-50 ns) ,Power Stability: RMS＜2% ,Output Type: 0.5m PMF with FC/APC Connector 		Contact us Request for quote
LL-FS-1030-4-0.05/10-3/30
Working Wavelength: 1030nm (1025-1035 nm optional), Average Output Power: ＞3mW@100kHz, ＞30mW@1MHz ,Pulse Energy: ＞30nJ,Pulse Width: 4 ps (Linear chirped, dechirped to less than 300 fs), Adjustable Repetition Rate: 50kHz-10MHz (with selective pulse interval 20-50 ns), Power Stability: RMS＜2% ,Output Type: 0.5m PMF with FC/APC Connector 		Contact us Request for quote
LL-FS-1030-70-0.05/10-50
Working Wavelength: 1030nm (1025-1035 nm optional) ,Average Output Power: ＞50mW@1MHz ,Pulse Energy: ＞50nJ ,Pulse Width: 70 ps (Linear chirped, dechirped to less than 300 fs) ,Adjustable Repetition Rate: 50kHz-10MHz (with selective pulse interval 20-50 ns) ,Power Stability: RMS＜2% ,Output Type: 0.5m PMF with FC/APC Connector 		Contact us Request for quote
LL-FS-1030-140-0.05/10-50
Working Wavelength: 1030nm (1025-1035 nm optional) ,Average Output Power: ＞50mW@1MHz, Pulse Energy: ＞50nJ ,Pulse Width: 140 ps (Linear chirped, dechirped to less than 300 fs) ,Adjustable Repetition Rate: 50kHz-10MHz (with selective pulse interval 20-50 ns) ,Power Stability: RMS＜2%, Output Type: 0.5m PMF with FC/APC Connector 		Contact us Request for quote
LL-FS-1030-210-0.05/10-50
Working Wavelength: 1030nm (1025-1035 nm optional) ,Output Power: ＞50mW@1MHz, Pulse Energy: ＞50nJ, Pulse Width: 210 ps (Linear chirped, dechirped to less than 300 fs), Adjustable Repetition Rate: 50kHz-10MHz (with selective pulse interval 20-50 ns) ,Power Stability: RMS＜2% ,Output Type: 0.5m PMF with FC/APC Connector 		Contact us Request for quote
LL-FS-1030-800-0.05/10-50
Working Wavelength: 1030nm (1025-1035 nm optional) ,Average Output Power: ＞50mW@1MHz ,Pulse Energy: ＞50nJ ,Pulse Width: ＞800 ps (Linear chirped, dechirped to less than 300 fs) ,Adjustable Repetition Rate: 50kHz-10MHz (with selective pulse interval 20-50 ns), Power Stability: RMS＜2%, Output Type: 0.5m PMF with FC/APC Connector 		Contact us Request for quote
LL-FS-1030-0.4/10-0.1/5-10
Working Wavelength: 1030nm (1020-1040 nm optional) ,Average Output Power: 10W@1MHz ,Pulse Energy: 10μJ ,Pulse Width: 400fs-10ps optional ,Adjustable Repetition Rate: 100kHz-5MHz, Power Stability: RMS＜2% 		Contact us Request for quote
LL-FS-1030-0.4/10-0.1/5-100
Working Wavelength: 1030nm (1020-1040 nm optional) ,Average Output Power: 10W@100kHz ,Pulse Energy: 100μJ ,Pulse Width: 400fs-10ps optional, Adjustable Repetition Rate: 100kHz-5MHz ,Power Stability: RMS＜2% 		Contact us Request for quote
